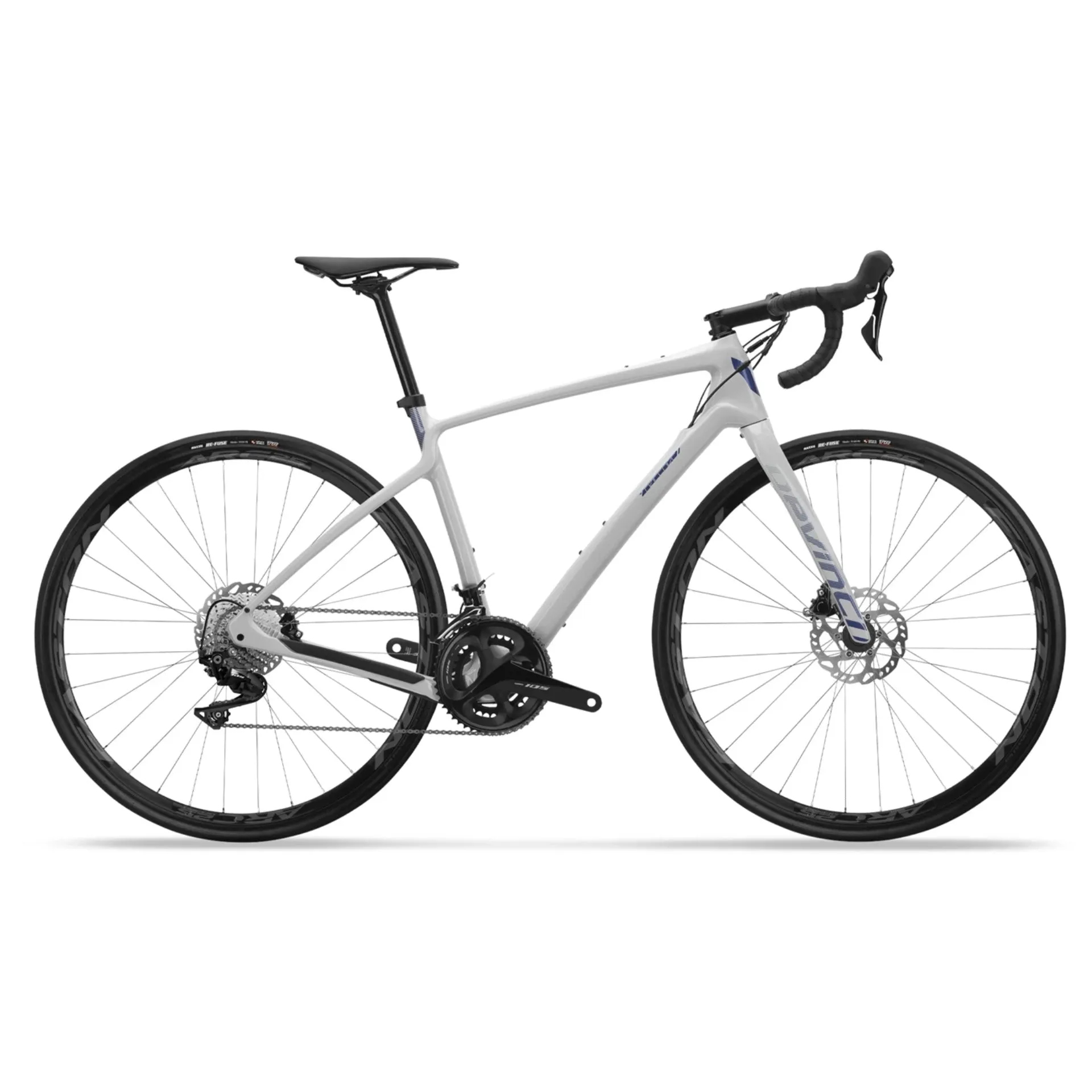

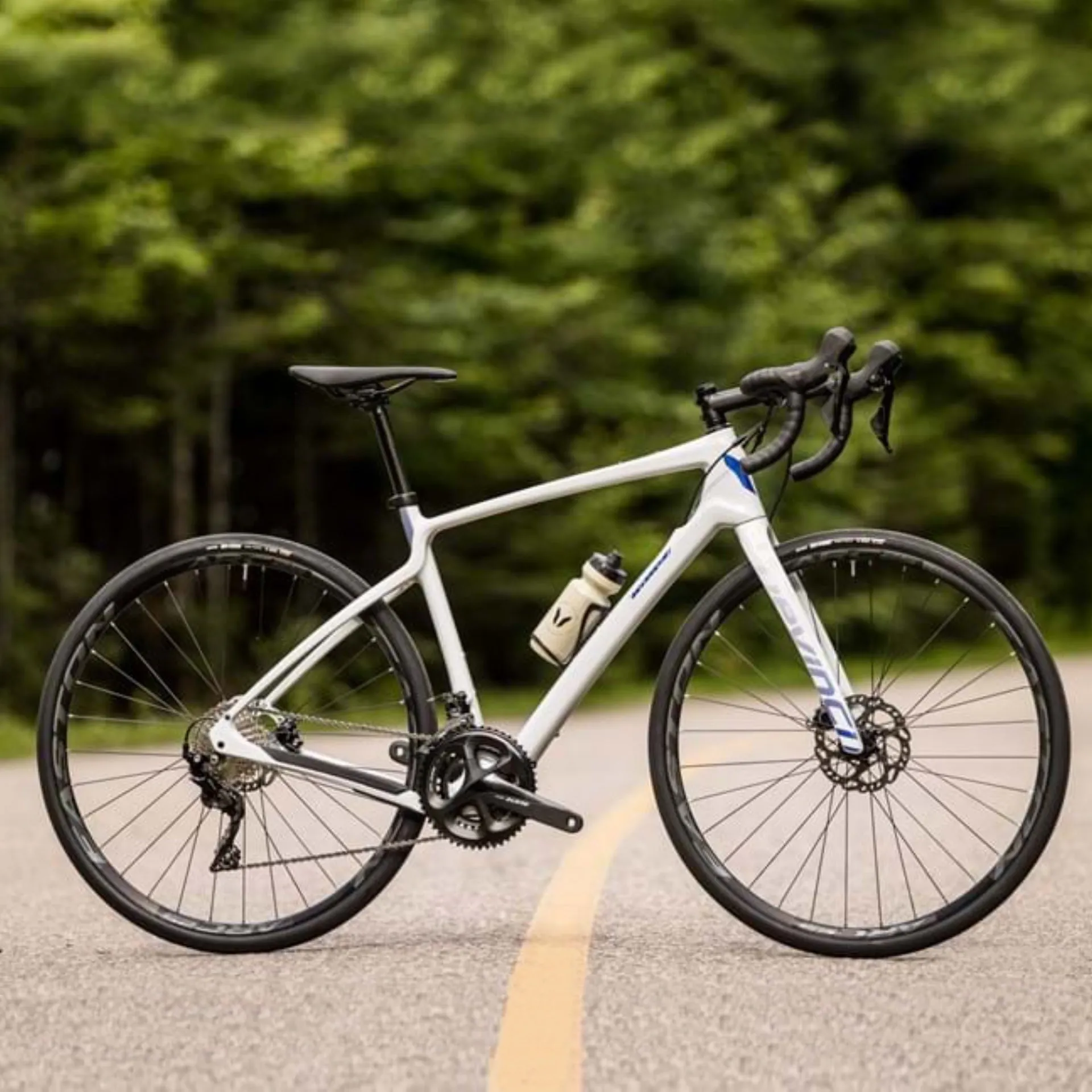

Name: Devinci Hatchet Carbon - 105
SKU: 33685

Wherever you roll, Hatchet is willing, able — and highly capable. This versatile, fun-igniting platform merges off-road DNA with a moonshot mindset that shreds Strava gravel, brings the party to Grinduro and even plays nice on pure pavement. Hatchet has 700c x 45mm / 650b x 2.1’’ tire clearance. When it’s time to slow your roll, 160mm flat-mount brakes stop on a dime. Additional details include three bottle mounts (two in the frames, one under the down tube), a top-tube mount for added storage on longer rides/races, discrete rack/fender mounts and a capped-thru axle fork for an ultra-clean look and a lifetime warranty that won’t let you down.

Exceedingly responsive handling, no matter rider size/height, thanks to a size specific carbon layup that promotes consistent stiffness across all frame sizes. High modulus fibers used in strategic areas maximize strength and rigidity.

Frame

FRAME - Carbon DMC-R HR
FORK - Devinci Full Carbon
HEADSET - FSA Orbit | C40 | Integrated
SEAT CLAMP - Alloy CNC | 27.2mm

Cockpit

HANDLEBAR - V2 Pro | B:31.8mm | R:70mm | D:120mm
STEM - V2 Pro | B:31.8mm | 6°
SADDLE - V2 Pro
SEATPOST - V2 Elite | 27.2mm
HANDLEBAR TAPE - Super Soft

Brakes

FRONT SHIFTER / BRAKE - Shimano 105 R7020/R7070
REAR SHIFTER / BRAKE - Shimano 105 R7020/R7070
ROTORS - Shimano RT70 | Centerlock | 160mm

Drivetrain

Wheels

The Intake port

State-of-the-art intake port complies with all brake configurations for streamlined frame aesthetics and enhanced ease of use.
Internal cable routing

Uses full hose to keep debris out and for longer-lasting, silky smooth shifting.
Front derailler mount cover

Ultra-clean aesthetics when using 1x drivetrain.
4x mount options

Top tube mount, 2x bottle cage in the frame and 1x under the DT.
Dual Core Fusion - Gravel Spec

Dual Core engineering strengthens the bottom half of the bike with a carbon blend and a dynamic tube-shape design for better power transfer and lateral stiffness, while the top half design delivers compliance and comfort for improved overall handling.
386 EVO BB

Stiffest option with larger, more durable bearings while running standard 30mm axle crankset.
Fork with capped axle, internal fender mount and discrete rack mount

Streamlined, debris shunning capped-axle fork. Frame and fork feature internal fender- and discrete rack-mounts for fast, clean aesthetics.
BB Interchange

Ingenious BB Interchange provides quick access to frame internals for easy cable routing, assembly and maintenance.
